反张夹固环

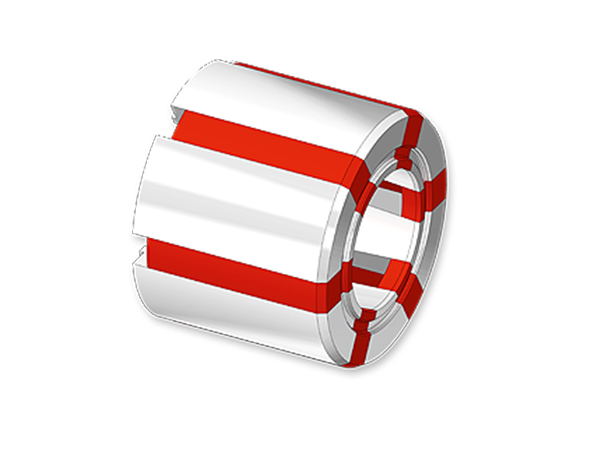

Segmented clamping bushings

反张夹固环

产品参数/ Product parameter

高弹性、减震夹持衬套
反张套筒夹头的中心元件是夹固环,传统型套筒是以弹簧钢硬化制成,但材质较软,无法有效夹持工件。HAINBUCH的夹固环是以强韧的铬钼钢,热处理HRC60,精密研磨完成。全部握持面皆为一体成形,十分坚固。每个单片由特殊橡胶材料硫化连结,具高度弹性且有较大的夹持范围,能有效夹持工件,不易松脱,而且更具防屑、防水效果,更能确保加工质量稳定。可以重覆快速换模,重现夹持精度0.005mm,不需要作修整与车削,精度一直保持。
SEGMENTED CLAMPING BUSHINGS
Heavy duty
In terms of precision, stability, and flexibility the vulcanized segmented clamping bushings are unbeatable. They consist of segments made of chrome/nickel, case hardened steel that is very hard, extremely wear resistant, and rigid [60 HRC]. Plus, they do not have to »bend« to clamp the workpiece. In addition, all functional surfaces are completely ground in one clamping setup. The result: maximum concentricity, maximum holding power, and long life span.
Key advantages
Parallel clamping over the entire clamping length
Vibration dampening through rigid steel segments
Large clamping ranges due to elastic vulcanization between the segments
