产品参数/ Product parameter
即使是手排跑车，一样需要有优异马力的操作敏捷
TOROK手动夹具王是迎合非动力夹持需求而设计，有很多机械需要精密夹持但没有空压或油压单元可作驱动，因此手动夹头极为适合类似的夹持需求，无论磨床、半自动机械，手动夹头提供方便快速与重力夹持解决车切削需求，轻夹持可以达到的高同心度与重覆精度要求，提升机械的生产效率。
标准规格：65型、100型(其它规格另询)
适用于：圆筒、内孔磨床，车床，专用机，滚齿机、插齿机、教学使用车床。
优势：
●全包式夹持，使用标准夹固头。
●高刚性。
●同心度与重复夹持精度高。
●快速换模。
●夹持力量高而且可以调整。
●具备相同夹具王系统的优点。
●后拉式夹持，承靠止动器。
●独特夹持再加上额外的续夹能力。
●更换不同夹固头，同心度依然保持。
●可高速运转(有止动器时)且刀具寿命延长。
●无须油压缸或其它动力。
CLAMPS GENTLY OR FORCEFULLY

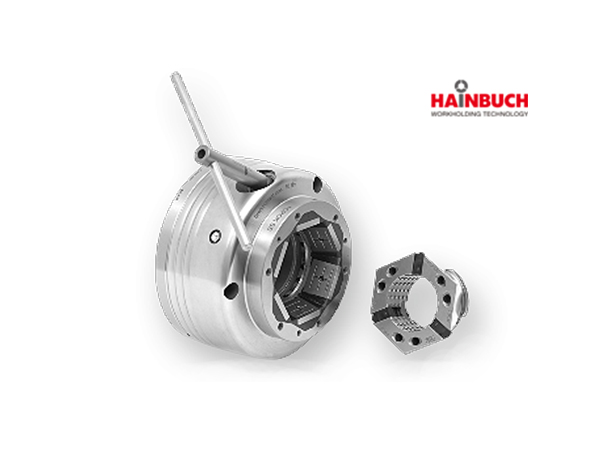

The TOROK manual actuated chuck is primarily used in prototyping on machines without a clamping cylinder. Basically, it is implemented wherever users are reluctant to sacrifice the accustomed HAINBUCH quality when a clamping cylinder is not available.
Best of all:
Thanks to its easy manual actuation you can safely and delicately clamp in the customary manner when used on grinding machines. For example: With an optional base plate the TOROK can also quickly be converted for stationary use.
More clamping options in combination with clamping devices-adaptations
And in combination with our clamping device adaptation, such as the MANDO Adapt mandrel-in-chuck or the jaw module, many more clamping possibilities are available to you. In the future you can also rely completely on the HAINBUCH modular system, even for your manual chuck.
Key advantages
●Sensitive manual clamping is possible
●Manual actuation – a clamping cylinder is not required
●Concentric precision < 0.01 mm possible
●Minimal inertia loss
●Standard flanges available with adjustable bolt, Camlock upon request
